Prosessorene er testet, renset og klargjort for sending.

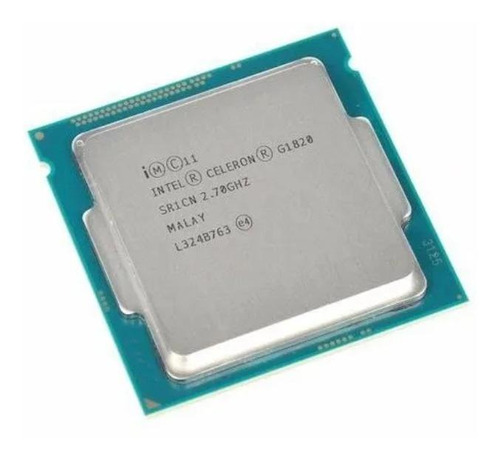

Intel Celeron Processor G1820 2.70 GHz DualCore
Del dette produktet med andre:
| Name | Intel® Celeron® Processor G1820 (2M Cache- 2.70 GHz) |
| Product Collection | Intel® Celeron® Processor G Series |
| Code Name | Haswell |
| Vertical Segment | Desktop |
| Processor Number | G1820 |
| Lithography | 22 nm |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 2 |
| Total Threads | 2 |
| Processor Base Frequency | 2.70 GHz |
| Cache | 2 MB Intel® Smart Cache |
| Bus Speed | 5 GT/s |
| TDP | 53 W |
| Supplemental Information | |
| Embedded Options Available | Yes |
| Datasheet | View now |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR3-1333 | DDR3L-1333 @ 1.5V |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 21.3 GB/s |
| ECC Memory Supported ‡ | Yes |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® HD Graphics for 4th Generation Intel® Processors |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.05 GHz |
| Graphics Video Max Memory | 1.7 GB |
| Graphics Output | eDP/DP/HDMI/DVI/VGA |
| Max Resolution (HDMI)‡ | 1920×1080@60Hz |
| Max Resolution (DP)‡ | 2560×1600@60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 2560×1600@60Hz |
| Max Resolution (VGA)‡ | 1920×1200@60Hz |
| DirectX* Support | 11.1/12 |
| OpenGL* Support | 4.3 |
| Intel® Quick Sync Video | Yes |
| # of Displays Supported ‡ | 3 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | Up to 3.0 |
| PCI Express Configurations ‡ | Up to 1×16 | 2×8 | 1×8+2×4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1150 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2013C |
| TCASE | 72°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | No |
| Intel® Turbo Boost Technology ‡ | No |
| Intel vPro® Platform Eligibility ‡ | No |
| Intel® Hyper-Threading Technology ‡ | No |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | No |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Security & Reliability | |
| Intel® AES New Instructions | No |
| Secure Key | Yes |
| Intel® Trusted Execution Technology ‡ | No |
| Execute Disable Bit ‡ | Yes |
