Prosessorene er testet, renset og klargjort for sending.

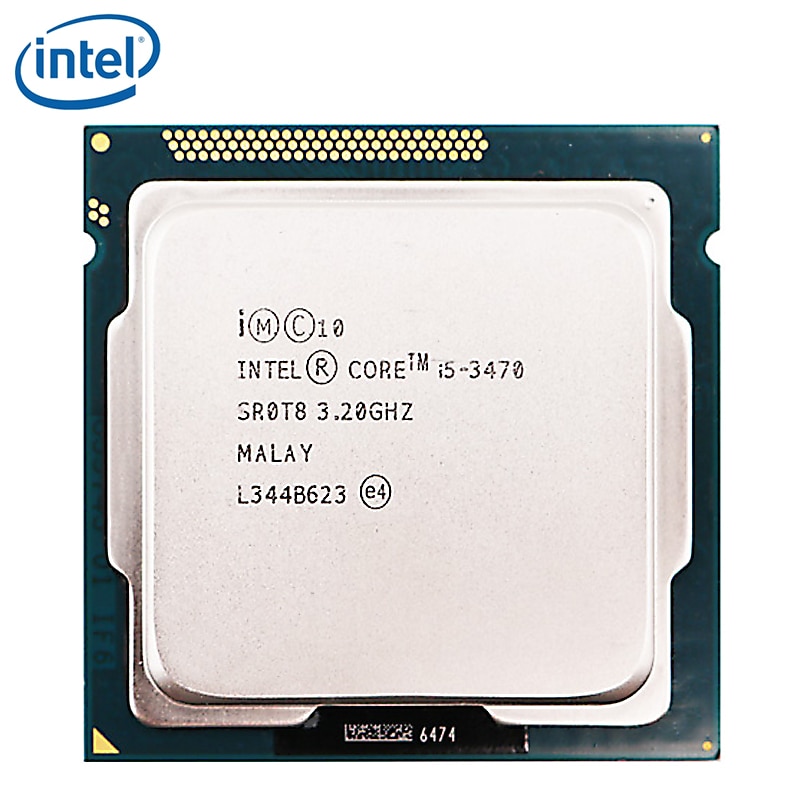

Intel Core i5 3470 Processor 3.20 GHz QuadCore
Del dette produktet med andre:
| Model | Intel Core i5-3470 Processor (6M Cache- up to 3.60 GHz) |
| Product Collection | Intel® Core™ Processors |
| Code Name | Ivy Bridge |
| Vertical Segment | Desktop |
| Processor Number | i5-3470 |
| Lithography | 22 nm |
| CPU Specifications | |
| Total Cores | 4 |
| Total Threads | 4 |
| Max Turbo Frequency | 3.60 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 3.60 GHz |
| Processor Base Frequency | 3.20 GHz |
| Cache | 6 MB Intel® Smart Cache |
| Bus Speed | 5 GT/s |
| TDP | 77 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Datasheet | View now |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR3 1333/1600 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 25.6 GB/s |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® HD Graphics 2500 |
| Graphics Base Frequency | 650 MHz |
| Graphics Max Dynamic Frequency | 1.10 GHz |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Flexible Display Interface (Intel® FDI) | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 152 |
| Expansion Options | |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | up to 1×16 | 2×8 | 1×8 & 2×4 |
| Package Specifications | |
| Sockets Supported | FCLGA1155 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | 2011D |
| TCASE | 67.4°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel vPro® Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | No |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Anti-Theft Technology | Yes |
